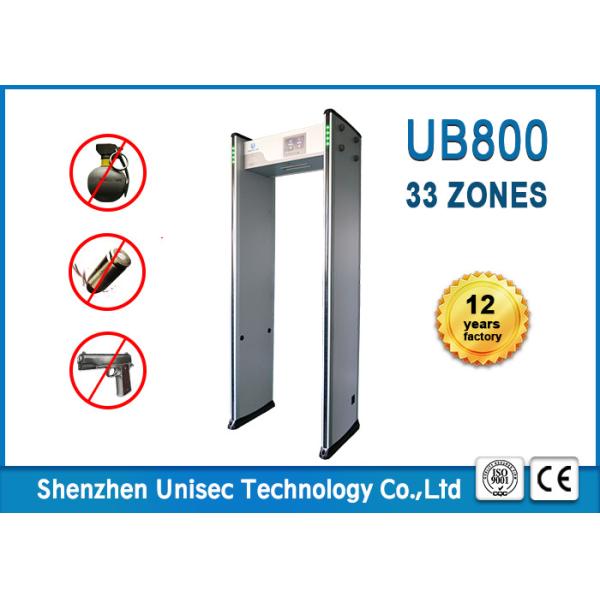

Foldable Digital Archway Metal Detector 33 Detect Zone 256 Level Sensitivity

Passenge Foldable Digital Archway Metal Detector Security Guard Gate With 33 Detect Zone

PARAMETERS

Standard External size: 2200mm(H)X800mm(W)X580mm(D)

Standard Internal size: 2000mm(H)X700mm(W)X500mm(D)

Package size for door panels: 2290*560*190mm *1ctn

Package size for control unit: 760*380*260 mm*1ctn

Gross weight: 70KG

Power Supply:AC85V-264V / 50-60Hz

Power: <20W

Working temperature:-20℃--+50℃

Working Frequency :4KHZ—8KHZ

CHARACTERISTIC & FUNCTION

Ø 33 detecting zones, Simultaneous alarm from multi- zones;

Ø Sensitivity adjustable: Each zone has 999 sensitivity level

0-999 adjustable

Ø 7 inch color LCD screen

Ø Infrared remote control

Ø Using high density fireproof material

Ø Automatically count passengers and alarm times

PASS and ALARM count: up to 99999

Ø High sensitivity: Ferrous/ non-ferrous /Alloy can be detected

Ø 15 preset programs for security applications

Ø Alarm volume range from level 0 to 9

Ø Alarm tones: Change from 1 to 9

Ø Anti-interference function, using advanced interactive transmitting and receiving to avoid interference.

Ø 100 frequencies for option. To work with neighbouring gates at 50cm

Ø Sound & LED alarm: Two Sides LED indicator easily show where the metal is.

Ø Detecting speed: up to 100 passenger/ min.

Ø Password protection, only the authorized person can operate.

Ø Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction. Modularization design,easy for maintenance and replacement.

Ø Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.

Ø Network support

Ø Can be customized 36 zones

Ø 4 hours backup battery (Option)

Ø Sensitivity Test piece: One yuan Coin, omnidirectional detection
